generator/ electronic ignition
for Yamaha TY 250, YZ400E (1977 - 1978)

Specially made for the Trial bike TY250 which requires heavy flywheel, will however also fit DT250A, DT360A, DT250B, DT250C, DT400C and possibly MX360A, MX360B, MX400B, MX400C (but has heavier rotor: 1.9kg in place of 1.1kg for our DT system).

There is no need for changes on engine casing.

Rotorweight: 1.9kg
Diameter: 128mm

• all parts are new
• plenty of light output
• very stable ignition with solid spark
• better starting, better fuel burning
• no wear anymore on points

• assembly instructions for DT250 (are except for rotorweight same)
• wiring diagram
• original wiring diagram of the DT 400
• parts in the pack (photo)

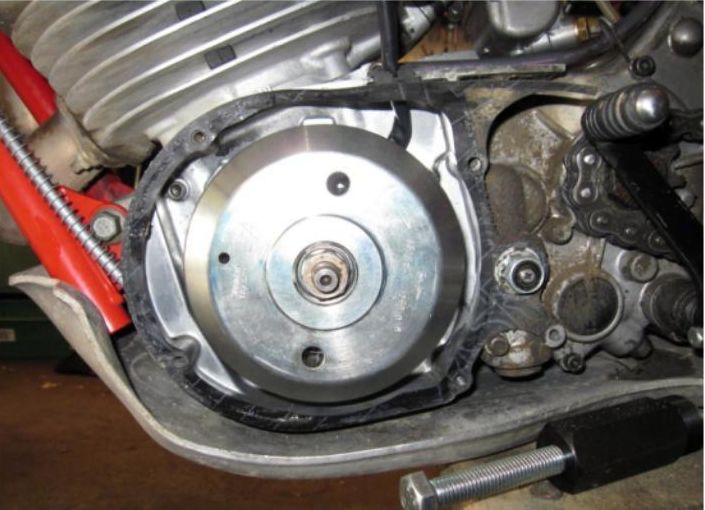

• TY 250 engine with the installed system
• the new stator plate
• fitment of ignition coil and regulator

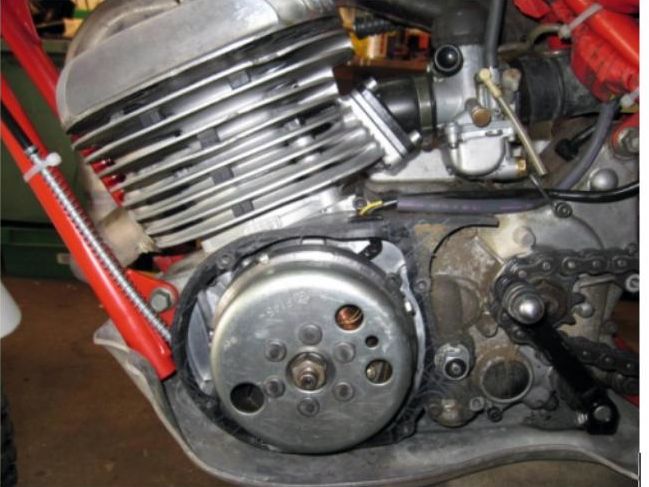

• the stock system on the TY
• the stock parts
