System 72 32 799 DC => €/$
System 72 32 799 AC => €/$
System 77 33 799 DC => €/$
System 77 33 799 AC => €/$
System 77 34 799 DC => €/$
System 77 34 799 AC => €/$
AC - DC ??

magneto & ignition system for Montesa  (RH side, rotor fastening nut M14)
ignition & lights System (may run with or without battery)


The systems are available with 3 differently weighted rotor
  • 72 32 799 with rotor 1kg
  • 77 33 799 with rotor 1.4kg  NOTE: does not fit under all covers!
  • 77 34 799 with rotor 2kg     NOTE: does not fit under all covers!
NOTE: There have been various versions of Montesa. Main difference relative to ignition system is what side of engine ignition is mounted and thickness of magneto side crankshaft pin (different size of rotor fastening nut).
This system should fit: Montesa H6.
Magnet based solid state ignition. Replaces original Magneto as well as all ignition parts. Does not require changes on crankcase.
  • DC versions 12V 180 watts
  • AC versions 12V 70W. Please see details for AC systems
  • system completely without lighting support see 72 32 599 00
advantage over original system:
  • all parts are new
  • solid state ignition
  • very stable ignition with solid spark
  • better starting, better fuel burning
documentation:

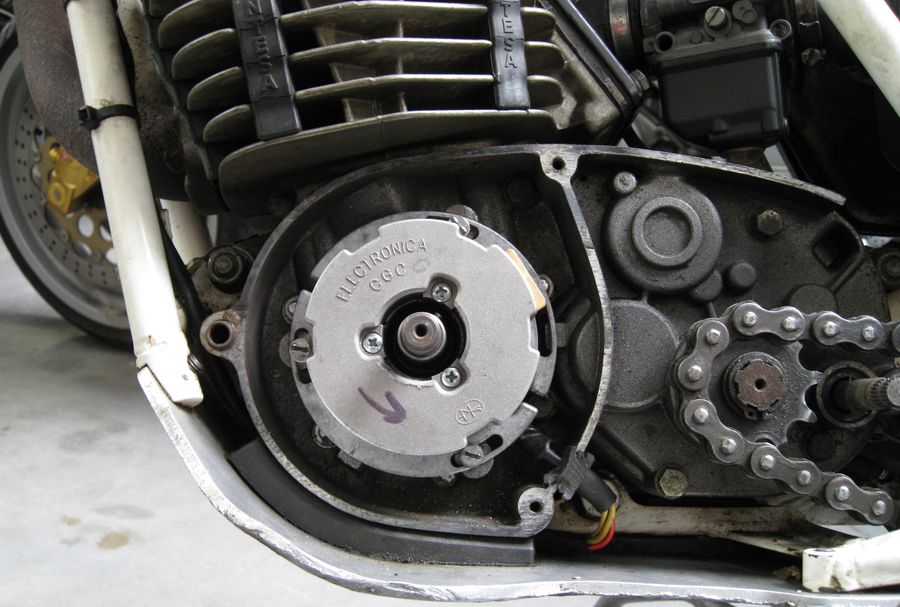

photos:
