System 77 70 999 00
price

generator / electronic ignition  for Zündapp K/KS 500 / KS 600

Magnet based generator with integrated contactless, fully electronic ignition. Output at 12V/180W DC. Replaces old Noris magneto of type DS with regulator and centrifugal govenor. No changes on engine casing needed.

Regulator and advance unit have to be mounted outside the engine, say in the front of the box frame.

The difference to system 73 15 999 is that in place of the twin ignition coil there are 2 single coils, allowing fitment oder the top cover.
Advantage over original system
  • all parts are new
  • solid state ignition and advance
  • more light output (with light bulb 40/45W)
  • very stable ignition with solid spark
  • better starting, better fuel burning
  • no wear anymore on collector, govenor and points
please note This is a replacement system, not a 1:1 copy of the stock material (if you want this you will need to address BMW). We use the main components also in other similar systems as only multi use material enables us to offer a resonable price, especially on such rather complex constructions.

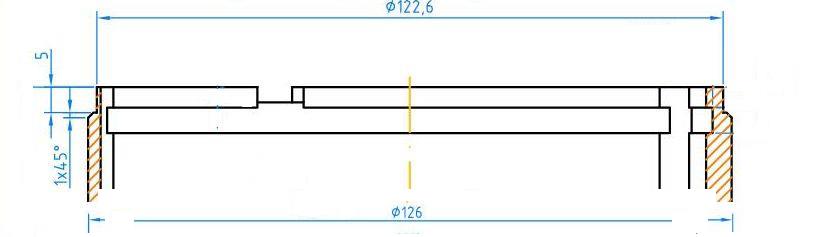

The housing is made of aluminium, hence alu-coloured. The seat area for the (not delivered) front cover is different. See dimensions here. Fastening holes for the cover are M5 and are horicontally spaced by 76mm.
The wire exits the tower at rear.

The system can not be used in KS750, even though the stock systems may be same. Our systems differ in one critical dimension.
Documentation
Photos
