System 352 61 799
=> €/$

generator/electronic ignition
for engine CZ 125/150/C

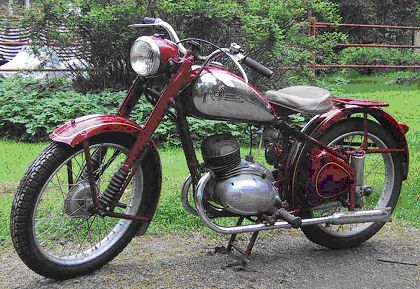

used in CZ 125/150C, in JAWA 351/352 and a few other motorcycles
12 Volts system (T Model has openly sitting carburettor,
C Model hides carb)
see also for CZ 125/150 model B/T see system 351 61 799
for other JAWA/CZ systems
different in magneto terms is crankpin diameter
which on B/T is 2mm narrower
 Magnet based generator with integrated fully electronic ignition. Output 12V/100W DC. Solid state ignition with own power supply from within the system. Replaces old magneto, points, condenser. You may drive without a battery, if you want. There is no need for changes on engine casing.
advantage over original system
  • all parts are new
  • more light output
  • very stable ignition with solid spark
  • better starting, better fuel burning
  • no huzzle anymore with setting points
documentation
photos
