	Powerdynamo brings new ignition & light to your vintage motorcycle

System 13 95 799 00	generator/electronic ignition for MZ ES/TS 125-150
12 Volts system	Special system for 2 spark plugs in ES, ETS, TS 125 and 150
	Magnet based generator with integrated fully electronic ignition. Output 12V/150W DC. Contactless electronic ignition with own power supply from within the system. Replaces old dynamo, points, condenser, ignition coils. You may drive without a battery, if you want.
This system differs to the standard system 13 21 799 00 which does not support 2 spark plugs. It requires a modified sidecover (mz part number 11 41 048). To give you a go back option we offer a new cover as part of the system which you can safely modify as per our instructions)
advantage over original system	all parts are new more light output very stable ignition with solid spark better starting, better fuel burning no huzzle any more with setting points
documentation	partslist assembly instructions parts in the pack (photo) wiring diagram information on twin ignition coil

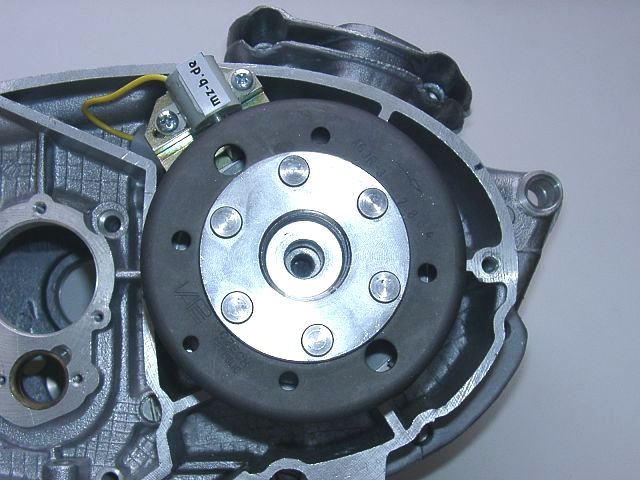

photos	adapter plate in TS125 engine housing extra cut-out on dynamo cover to be done further (smaller) modification on cover further picture of this second modification view at sensor unit
see also	normal system for MZ ES/TS 125/150 systems for other MZ 2 strokes
