System 71 21 799 AC
=> €/$

generator / electronic ignition for liquidcooled 2 stroke KTM engine of types 544 and 545 Enduro (90mm base, clockwise rotation, mounted on RH side of engine replacing stock Motoplat or SEM magneto ignition)

  For KTM Type overview see here  There is ALWAYS a type number to your KTM engine or your manual!
Magnet based generator with integrated solid state ignition. Output 12V/70W AC. Replaces old ignition system (including ignition coil). There is no need for changes on engine casing. The system is technically capable to run without battery.
Important: The AC system is destined for use in offroad sports and hence does not support battery and side indicator functions. For use in public road traffic consult your local regulations.
To the DC system 71 21 799 DC here (supports battery and side indicators)!
advantage over original system:
  • all parts are new
  • more light output
  • very stable ignition with solid spark
  • better starting, better fuel burning
documentation:

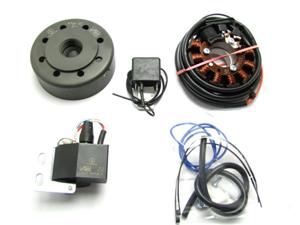

photos:
